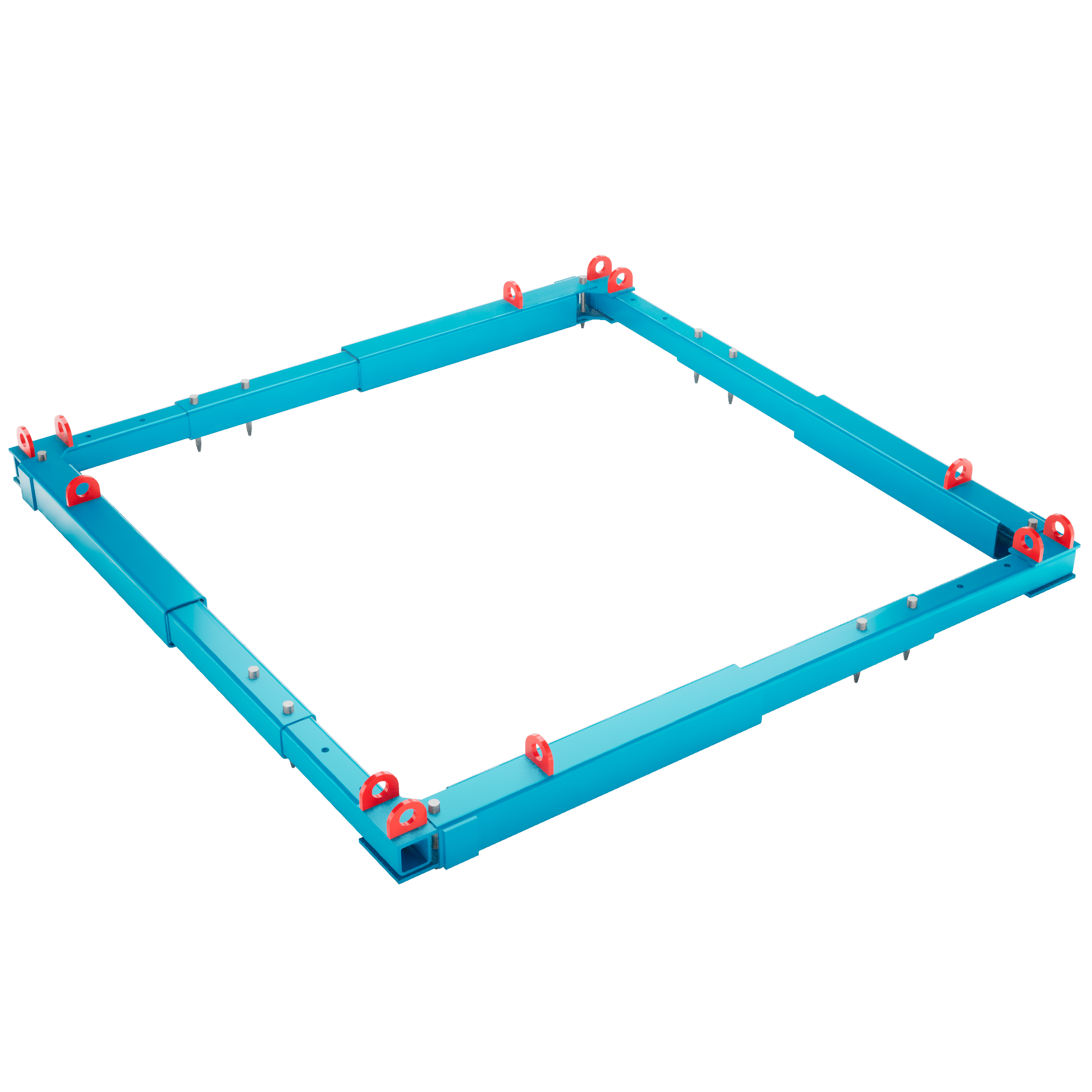

Single Acting Manhole Brace

Excavation Bracing Systems

Our Single Acting Manhole Brace is the ideal solution for small cofferdams where the loading requirements are minimal.

Adjustment is provided by the means of mechanical and hydraulic extension.

The single acting variant provides adjustment by means of mechanical and hydraulic extension. The legs are extended hydraulically and retracted manually.

Standard Solution
Mabey Hire manhole brace excavation frame on site

Product highlights

  • Available in a range of sizes from 1550mm to 5020mm
  • Clear internal dimensions: 1270mm to 3930mm
Get a quote Standard Solutions
